Product Description
3075 Zoom Stereo Microscope Series
Clarity, Depth of Field and Amazing Resolution
Our most popular zoom stereo delivers excellent flatness and tremendous depth of field via our most advanced Greenough optical system ever. Incorporating the latest in ergonomic, optical and mechanical designs, the 3075 Zoom Stereo Series delivers unprecedented clarity, detail and accurate color rendition for industrial, OEM and classroom applications.
Excellence by Design
Utilizing the most advanced optical and mechanical designs the 3075 Zoom Stereo Series delivers unsurpassed resolution and clarity at an affordable price. ACCU-SCOPE's new eyepiece design lends comfort to user's during extended viewing periods while maintaining exceptional color reproduction.
Digital Imaging at its Best
With a wide range of focusable c-mount adapters and coupled with our industry leading HD Digital Cameras, CCD or CMOS cameras the 3075 Zoom Stereo Series delivers outstanding images for photo documentation or live video at up to 60fps with our HD video cameras.
Modular Design, Maximum Flexibility
Whether your needs are with built-in illumination, external illumination, long working distance or high magnification the 3075 Zoom Stereo Series can be configured to meet individual needs. A wide range of stands, auxiliary objectives, light sources and eyepieces are available from Accu-scope / Unitron.

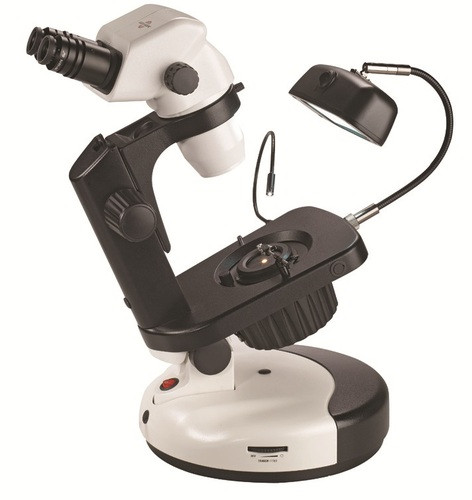

Accu-Scope 3075 Binocular Zoom Stereo Microscope on Gem Stand - The Gemological Professional's Microscope!
Binocular viewing head, inclined 45°, rotatable 360°
WF15x/15mm eyepieces with built in diopter adjustments & eyeguards
0.67x to 4.5x zoom range (10x -67.5x with 15x eyepieces)
Gem Stand with tiltable, 325º rotatable base, darkfield halogen illuminator
with sliding baffle and iris diaphragm, overhead fluorescent illuminator,
Stage mounted variable LED light guide for Gem Stand
Standard Specifications
- Optical System: Greenough
- Viewing Head: Binocular viewing head, inclined 45°. Interpupillary distance adjustment 54-76mm.
- Eyepieces: WF10x focusable eyepieces, 22mm field of view.
- Objectives: Zoom magnification objective 0.67x – 4.5x.
- Stage: Diffused stage plate in the base provides even illumination (on LED versions). Black and white contrast plates are also included.
- Stand: Cast alloy aluminum
- Illumination: Each stand has specific illumination characteristics. All LED stands are provided with incident andtransmitted illumination. A detailed listing can be found on the Download Section - Configurations
- Focusing System: Dual focusing knobs with adjustable tension control on all LED, Plain Focusing and Pole Stands.
- Accessories: Dust cover, eyeguards and instruction manual.
Optical Data
|
Objective |
0.3X |
0.4X |
0.5X |
0.75X |
1X |
1.5X |
2X |
|
|
Working Distance |
287mm |
217mm |
177mm |
117mm |
100mm |
47mm |
26mm |
|
|
10X |
Magnification |
2.0x-13.5x |
2.7x-18.0x |
3.4x-22.5x |
5.0x-33.8x |
6.7x-45.0x |
10.1x-67.5x |
13.4x-90.0x |
|
View Field (mm) |
109.5-16.3 |
82.1-12.2 |
65.7-9.8 |
43.8-6.5 |
32.8-4.9 |
21.9-3.3 |
16.4-2.4 |
|
|
15X |
Magnification |
3.0x-20.3x |
4.0x-27.0x |
5.0x-33.8x |
7.5x-50.6x |
10.1x-67.5x |
15.1x-101.3x |
20.1x-135x |
|
View Field (mm) |
79.6-11.9 |
59.7-8.9 |
47.8-7.1 |
31.8-4.7 |
23.9-3.6 |
15.9-2.4 |
11.9-1.8 |
|
|
20X |
Magnification |
4.0x-27.0x |
5.4x-36.0x |
6.7x-45.0x |
10.1x-67.5x |
13.4x-90.0x |
20.1x-135.0x |
26.8x-180x |
|
View Field (mm) |
59.7-8.9x |
44.8-6.7 |
35.8-5.3 |
23.9-3.6 |
17.9-2.7 |
11.9-1.8 |
9-1.3 |
|
|
25X |
Magnification |
5.0x-33.8x |
6.7x-45.0x |
8.4x-56.3x |
12.6x-84.4x |
16.8x-112.5x |
25.1x-168.8x |
33.5x-225x |
|
View Field (mm) |
44.8-6.7 |
33.6-5.0 |
26.9-4.0 |
17.9-2.7 |
13.4-2.0 |
9.0-1.3 |
6.7-1.0 |
|
|
30X |
Magnification |
6x-40.5x |
8x-54x |
10x-67.5x |
15x-101x |
20x-135x |
30x-202x |
40x-270x |
|
View Field (mm) |
34.8x-5.1 |
26.1-3.87 |
20.9-3.1 |
13.9-2.1 |
10.4-1.55 |
6.9-1 |
5.2-7.5 |
|
Optional Accessories
- Eyepieces: 15x, 20x and 25x
- Auxiliary Objectives: 0.3x, 0.4x, 0.5x, 0.75x, 1x, 1.5x and 2x
- LED Ring Lights
- Fiber Optic Illuminators
- Digital, HD and Video Cameras
- Fluorescent Ring Lights
- Microscope carry case
Warranty
- 5 year limited warranty for parts, labor and electronic components. LED bulbs are warranted for 1 year.
