Accu-Scope EXC-500-BE Ergo Binocular with NIS Infinity Plan Objectives

Quotes are available - contact us today!

Accu-Scope EXC-500-BE Ergo Binocular with NIS Infinity Plan Objectives

Quotes are available - contact us today!
SKU:
00AS-EXC-500-BE
Weight:
30.00 LBS
Shipping:
Free Shipping
Share

Product Description

EXC-500 Microscope Series Clinical Microscopy, Superb Optics, True-color LED Eco-illumination

ACCU-SCOPE's New EXC-500 Series offers best-in-class performance and value for clinical laboratory and research applications. The newly designed NIS optical system provides sharp, crisp images via Plan achromat or S-Plan APO objectives. The EXC-500 Series' modular design is compatible with many accessories for research, fluorescence, phase contrast and darkfield applications.

Best-in-Class Comfort

ACCU-SCOPE's EXC-500 Series defines a new standard for ergonomics for laboratory operators. Designed for clinical and research environments, the EXC-500 controls are intuitively placed for operator comfort and ease of use diminishing repetitive movements and eye fatigue.

Digital Imaging Made Simple

With a range of viewing heads available, the EXC-500 Series offers unsurpassed imaging efficiency. When combined with our signature Lumenera® Black Series cameras, operator workflow and productivity are enhanced with the Infinity Analyze imaging software allowing for a seamless system for image capture, measurements, annotations and much more.

Optimal LED Eco-illumination for Pathology & Cytology

Engineered with the purpose of providing a solution for operators attempting to detect purples, cyans and reds, the EXC-500 Series utilizes a white LED with a high color rendering index that is similar to halogen allowing for color renderings that are equal to those of halogen lamp images. The motion sensing Eco-illumination automatically turns off the transmitted LED illuminator when it detects the operator has left for 30 minutes, saving both energy and lamp life.

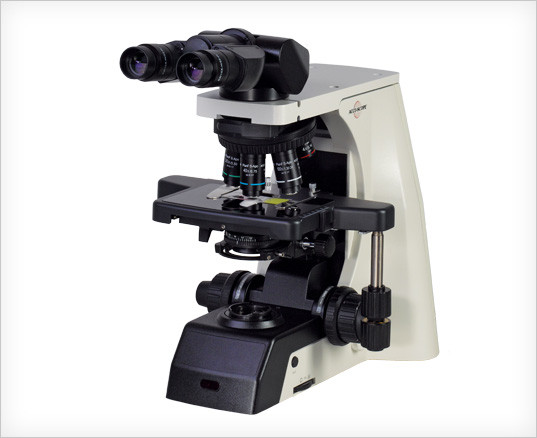

Accu-Scope EXC-500-BE Ergo Binocular with NIS Infinity Plan Objectives

  • Ergo tilting binocular viewing head, 5° to 35°, IPD 47 - 78mm, rotatable 360°
  • WF 10x/22mm focusing eyepieces with eyeguards
  • Reversed sextuple nosepiece
  • NIS Infinity Corrected PLAN 4x, 10x, 40xR & 100xR oil objectives
  • Gorilla™ glass mechanical stage, tension adjustable controls
  • Achromat swing out condenser, N.A. 0.90 (2x - 100x)
  • Coaxial coarse and fine focusing controls
  • Koehler illumination - 3 watt variable S-LED illuminator
  • Dust cover, power cord, instruction manual, UL Approved

Standard Specifications

  • Optical System: NIS Infinity optical system.
  • Viewing Head: Widefield or ergonomic binocular or trinocular viewing head. Ergo tilting heads are adjustable from 0° to 35°. Trinocular viewing heads have a 3-position beam splitter (0:100, 100:0, 80:20).
  • Eyepieces: WF 10x/22mm focusable eyepieces with eyeguards. Eyepiece accepts a 26.5mm reticle. Optional 15x and 20x eyepieces are also available.
  • Nosepiece: Reversed sextuple, ball bearing nosepiece with positive click stops to ensure parcentration.
  • Objectives:
    1. Clinical Labs: NIS Plan achromat 2x, 4x, 10x, 20xR, 40xR, 50xR, 60xR and 100xR oil.
    2. Research/Pathology: NIS S-Plan APO 4x, 10x, 40xR and 100xR oil.

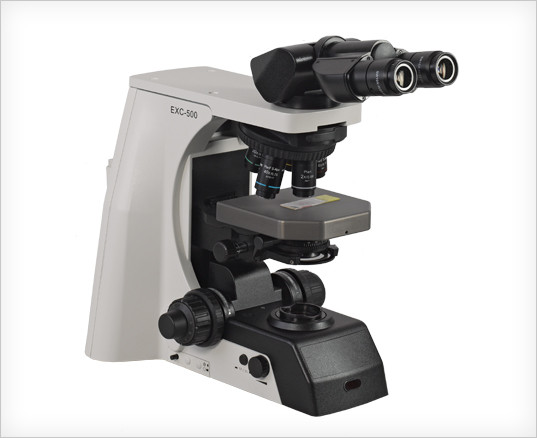

  • Stage: Mechanical stage with GorillaTM Glass insert and tension adjustable controls. Size 302mm x 152mm with X-Y movement range of 78mm X 54mm.  Optional pathology stage is available.
  • Condenser: Achromat swing-out condenser 0.9 dry/1.25 oil on a rack and pinion with iris diaphragm.
  • Stand: Cast alloy aluminum.
  • Illumination: 3 watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use. Universal power supply 110v-240v.
  • Focusing System: Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear.
  • Accessories: Dust cover, immersion oil and instruction manual.

Optional Accessories

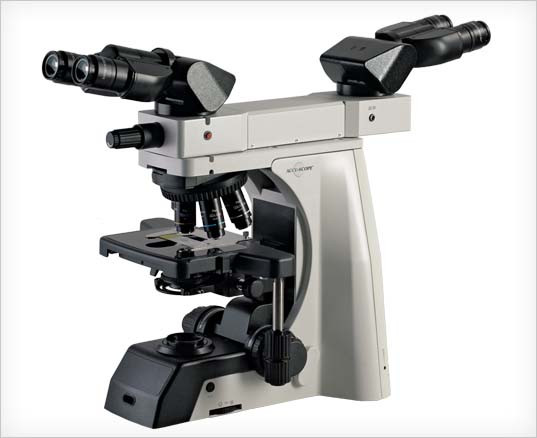

  • Multi-viewing configurations (2, 3 and 5 viewing positions)

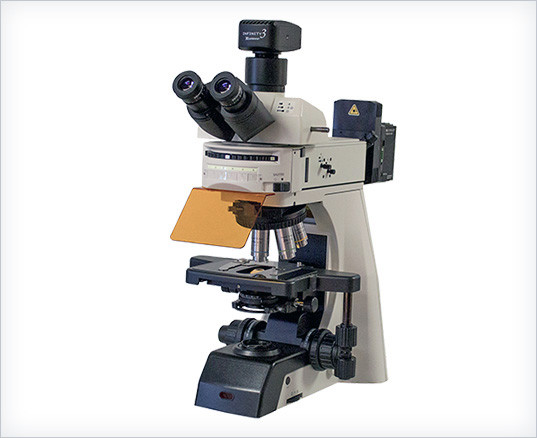

  • Fluorescence attachments
  • Plan achromat objectives: 2x, 4x, 10x, 20xR, 40xR, 50xR oil, 60xR and 100xR oil
  • S-Plan APO objectives: 4x, 10x, 20xR, 40xR and 100xR oil
  • Plan phase objectives: 10x, 20xR, 40xR and 100xR oil
  • Turret phase contrast condenser, darkfield dry condenser (N.A. 0.7-0.9), darkfield oil condenser (N.A. 1.25-1.36)
  • Simple polarizer/analyzer
  • Reticles
  • Gout kit
  • Microscope carry case

Miscellaneous

  • Microscope Dimensions (LWH): 300mm x 425mm x 450mm
  • Physical weight: 30lbs.

Warranty

  • 5 year limited warranty for parts, labor and electronic components.
  • 1 year warranty on LED bulb.

Click here for brochure
