  • Home
  • Microscope Cameras
  • Accu-Scope Excelis HDS Camera & Monitor System

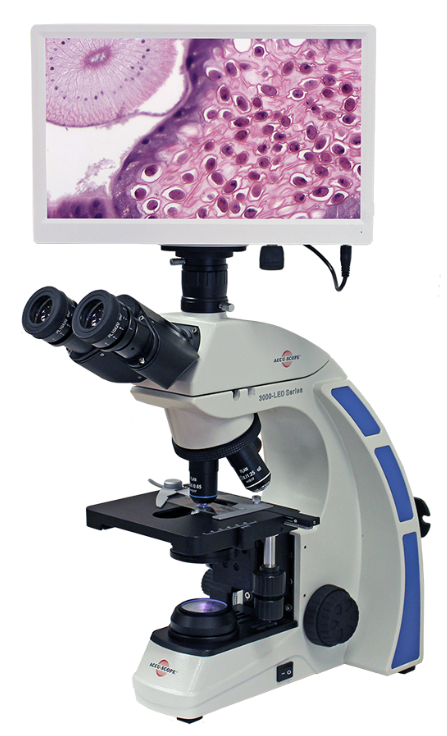

  • The Excelis HDS Camera & Monitor System, Shown on a 3001-LED Microscope

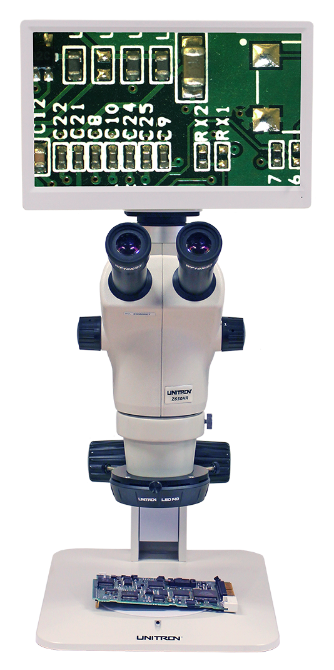

  • The Excelis HDS Camera & Monitor System, Shown on a Z650HR Stereo Microscope

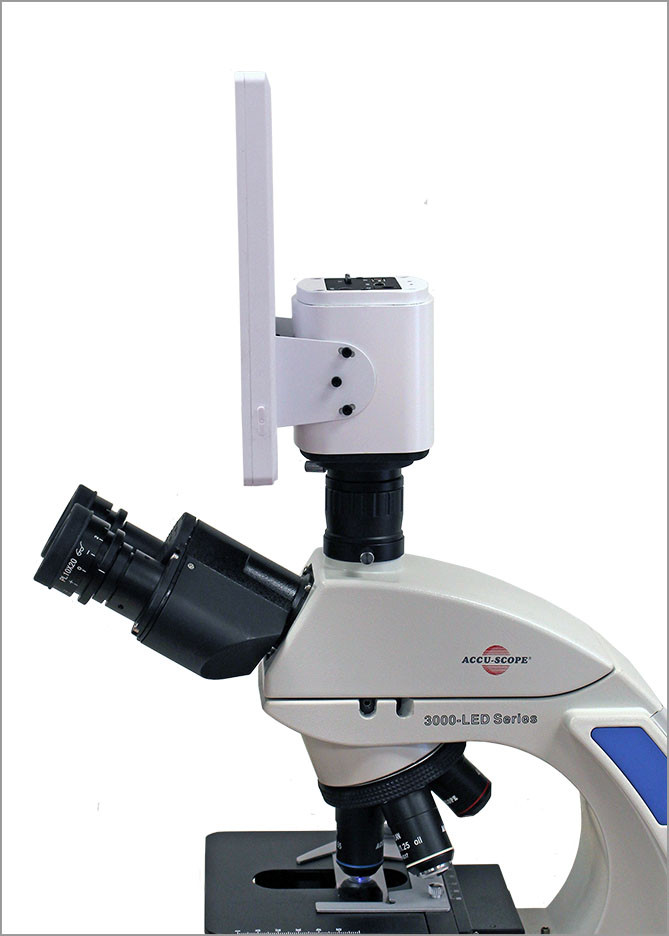

  • The Excelis HDS has the camera mounted directly to its own monitor, making it a stand-alone system and a space saving option for the lab or classroom. Mounting brackets and hardware are included along with easy to follow instructions.
  • Built-in mouse control software for HDMI viewing and recording without a computer.
  • Simulateneous live image output to an HD monitor and to a computer via USB2.0.
  • Perfect color reproduction
  • Manipulate live images without lag
  • Motion trails are recorded in fast speed and intact form
  • Rapid capture of low light images
  • Full HD resolution allows clear and fast image inspection
  • AU-600-HD-Excelis Camera

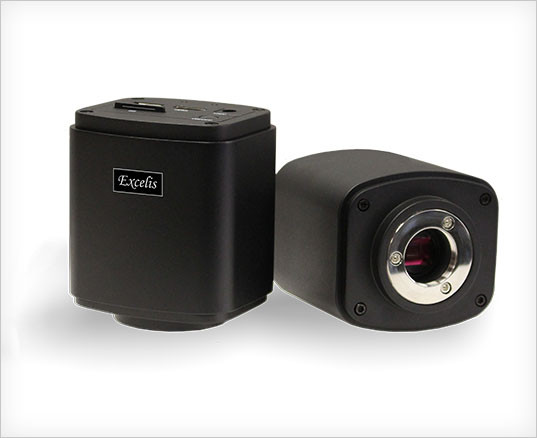

  • AU-600-HD-Excelis Showing the Camera Sensor
  • The Excelis HDS Camera & Monitor System, Shown on a 3001-LED Microscope


The Excelis HDS Camera & Monitor System, Shown on a Z650HR Stereo Microscope The Excelis HDS has the camera mounted directly to its own monitor, making it a stand-alone system and a space saving option for the lab or classroom. Mounting brackets and hardware are included along with easy to follow instructions. Built-in mouse control software for HDMI viewing and recording without a computer. Simulateneous live image output to an HD monitor and to a computer via USB2.0. Perfect color reproduction Manipulate live images without lag Motion trails are recorded in fast speed and intact form Rapid capture of low light images Full HD resolution allows clear and fast image inspection AU-600-HD-Excelis Camera AU-600-HD-Excelis Showing the Camera Sensor

    Accu-Scope Excelis HDS Camera & Monitor System

    Accu-Scope

    MSRP: $1,620.00
    Now: $1,458.00
    (You save $162.00 )
    (No reviews yet) Write a Review
    SKU:
    00AS-600-HDS
    Weight:
    5.00 LBS
    Shipping:
    Free Shipping

    Add to Wish List
    • Create New Wish List

    Share This Article

    • Overview
    • Reviews

    Product Description

    NOTE: This item is for the camera and monitor only. No microscope is included with purchase.





    Excelis HD Now Available With an Ultra HD Monitor!

    The best just got even better! In addition to our Excelis HD Camera, we are now offering an integrated 11.6" HD monitor attached to the Excelis HD camera for those who want a stand-alone camera and monitor system!

    The AU-600-HDS is simple to install and easy to use.  This versatile system is ideal for labs, classrooms and industrial environments. Users can view images directly on the HD screen, connect to a PC via USB, or images can be displayed simultaneously on the HD monitor and PC.

    Excelis HDS Camera & Monitor System

    The Excelis HDS Camera & Monitor System allows users to view and capture images and video directly to the supplied SD card without the need for a computer or separate monitor! The 11.6" HD display offers beautiful, crystal-clear image quality, and vibrant, true-to-life color with exceptional viewing from all angles. It can be used as a stand-alone system, or connected to a PC via USB cable where images can be displayed simultaneously on the Excelis HDS monitor and the PC. For even more flexibility and ideal for teaching environments, the HDMI architecture allows Excelis HDS to be connected to an HDMI-enabled projector as well.

    IMPORTANT NOTE: The Excelis HDS Camera & Monitor System is sold with the camera & monitor. The monitor is NOT available separately and cannot be mounted to previously purchased Excelis HD cameras.

    What's Included: Excelis HD Camera, 11.6" HD Display, HDMI cable, HDMI Adapter, USB 2.0 cable, 12V power adapter, Y power splitter,  8GB SD card, USB 2.0 Mouse, mounting brackets and hardware, CaptaVision PC Imaging Software, Quick Start Guide, Installation Guide

    Standard Specifications

    CAMERA
    Resolution (Live) 1920X1080
    Sensor 1/2.7" (0.5x C-mount recommended); SONY IMX236
    Frame Rate HDMI (60fps); USB 2.0 (30fps)
    Image Capture High Speed SD Card (8GB)
    Video Capture HDMI: 1080p, 60fps to SD Card
    USB 2.0: 1080p, 30fps to PC or Mac
    Exposure Time 0.001 sec - 10.0 sec
    White Balance Auto
    Settings Gain, Gamma, Saturation, Contraction
    Built-in Software Cloud 1.0
    PC Imaging Software CaptaVision Imaging Software (for PC only; Mac OS not supported)
    Advanced Camera Controls:

    live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function
    Image Types:
    JPEG, BMP, TIFF and RAW
    Output Modes
    Mode 1: USB 2.0 / Mode 2: HDMI
    System Compatibility

    Windows XP, Vista 7 and 8 (32 or 64-bit)

    Mac OS X (for image transfer to Mac OS X only)

    System Requirements Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
    Power Supply
    DC12V/1A
    Warranty 1 year
    What's In the Box Excelis HD Camera, HDMI Cable, USB 2.0 Cable, 12V Power Adapter, 8GB SD Card, USB Mouse, CaptaVision PC Imaging Software

    MONITOR
    Monitor Mountable 11.6" HD Display (mounting hardware included)
    Contrast 1000:1
    Dot Pitch 0.1338mm
    Input Modes AC power, HDMI
    Warranty 1 year
    What's In the Box Excelis HD Camera, 11.6" HD Monitor with mounting brackets/hardware, HDMI Adapter, Y Power Splitter, HDMI Cable, USB 2.0 Cable, 12V Power Adapter, 8GB SD Card, USB Mouse,CaptaVision PC Imaging Software

    Click here to download brochure.

    Product Videos

    Custom Field

    Product Reviews

    Write a Review

    Write a Review

    ×
    The Excelis HDS Camera & Monitor System, Shown on a 3001-LED Microscope
    Accu-Scope
    Accu-Scope Excelis HDS Camera & Monitor System

    ×

    You May Also Like...

    • Excelis Camera Excelis Camera Excelis Camera Excelis Camera
      Quick view Details

      Accu-Scope

      |

      sku: 00AS-600-HD

      Accu-Scope Excelis HD Camera

      MSRP: $1,195.00
      Now: $1,076.00
      Add to Cart
    • Accu-Scope EXC-350 Trinocular Microscope with Plan Objectives Accu-Scope EXC-350 Trinocular Microscope with Plan Objectives Accu-Scope EXC-350 Trinocular Microscope with Plan Objectives Accu-Scope EXC-350 Trinocular Microscope with Plan Objectives
      Quick view Details

      Accu-Scope

      |

      sku: 00AS-EXC-350

      Accu-Scope EXC-350 Trinocular Microscope with Plan Objectives

      MSRP: $1,619.00
      Now: $1,457.00
      Add to Cart
    • ACCU-SCOPE EXC-500-TE Shown With Lumenera® Infinity 3 Camera ACCU-SCOPE EXC-500-T with ScopeLED Fluorescence Illuminator & Lumenera® Camera ACCU-SCOPE EXC-500-TE Shown With Lumenera® Infinity 3 Camera ACCU-SCOPE EXC-500-T with ScopeLED Fluorescence Illuminator & Lumenera® Camera
      Quick view Details

      Accu-Scope

      |

      sku: 00AS-EXC-500

      Accu-Scope EXC-500 Binocular with NIS Infinity Plan Objectives

      View Details
    • Accu-Scope EXM-150-MS Microscope Options are available for dual inclined or inclined/vertical teaching heads. These make excellent options for use with HD, digital or eyepiece cameras. Accu-Scope EXM-150-MS Microscope Options are available for dual inclined or inclined/vertical teaching heads. These make excellent options for use with HD, digital or eyepiece cameras.
      Quick view Details

      Accu-Scope

      |

      sku: 00AS-EXM-150-MS

      Accu-Scope EXM-150-MS Monocular Microscope with Mechanical Stage

      MSRP: $342.00
      Now: $308.00
      Add to Cart
    • Accu-Scope 3075 Binocular Zoom Stereo Microscope on Gem Stand With a large variety of integrated LED transmitted/reflected stands, boom stands, ball bearing stands, flex arm stands, plain focusing stands, pole stands and diascopic stands the 3075 Series can be configured to fit any application. Accu-Scope 3075 Binocular Zoom Stereo Microscope on Gem Stand With a large variety of integrated LED transmitted/reflected stands, boom stands, ball bearing stands, flex arm stands, plain focusing stands, pole stands and diascopic stands the 3075 Series can be configured to fit any application.
      Quick view Details

      Accu-Scope

      |

      sku: 00AS-3075-GS

      Accu-Scope 3075 Binocular Zoom Stereo Microscope on Gem Stand

      MSRP: $2,168.00
      Now: $1,951.00
      Add to Cart
    • Accu-Scope 3012 Binocular Microscope, Plan Achromat Objectives Accu-Scope 3012 Binocular Microscope, Plan Achromat Objectives Accu-Scope 3012 Binocular Microscope, Plan Achromat Objectives Accu-Scope 3012 Binocular Microscope, Plan Achromat Objectives
      Quick view Details

      Accu-Scope

      |

      sku: 00AS-3012-LED

      Accu-Scope 3012-LED Binocular Microscope, Plan Achromat Objectives

      MSRP: $1,479.00
      Now: $1,331.00
      Add to Cart
    • Accu-Scope 3000-LED Binocular Microscope with Infinity Plan Achromat Objectives Accu-Scope 3000-LED 3 Watt LED Accu-Scope 3000-LED Binocular Microscope with Infinity Plan Achromat Objectives Accu-Scope 3000-LED 3 Watt LED
      Quick view Details

      Accu-Scope

      |

      sku: 00AS-3000-LED

      Accu-Scope 3000-LED Binocular Microscope with Infinity Plan Achromat Objectives

      MSRP: $1,141.00
      Now: $1,027.00
      Add to Cart
    • SALE
      Mitutoyo MF-B2017D measuring microscope with Z-axis measurement Mitutoyo MF-B2017D measuring microscope with Z-axis measurement
      Quick view Details

      Mitutoyo

      |

      sku: 64PKB0111

      Mitutoyo MF-B2017D Measuring Microscope (176-868-10) with Binocular Head (176-393) and LED Illumination (176-445A)

      MSRP: $28,640.00
      Was: $27,999.00
      Now: $25,776.00
      Add to Cart

    Recommended

    • 3032 with Accu-scope Attachable Mechanical Stage shown 3032 with Accu-scope Attachable Mechanical Stage shown
      Quick view Details

      Accu-Scope

      |

      sku: 00AS-300-3213-TA

      Accu-Scope Attachable Mechanical Stage

      MSRP: $413.00
      Now: $372.00
      Add to Cart
    • Excelis Camera Excelis Camera Excelis Camera Excelis Camera
      Quick view Details

      Accu-Scope

      |

      sku: 00AS-600-HD

      Accu-Scope Excelis HD Camera

      MSRP: $1,195.00
      Now: $1,076.00
      Add to Cart
    • Accu-Scope ACCU-CAM 300 Eyepiece Camera Accu-Scope ACCU-CAM 300 Eyepiece Camera Accu-Scope ACCU-CAM 300 Eyepiece Camera Accu-Scope ACCU-CAM 300 Eyepiece Camera
      Quick view Details

      Accu-Scope

      |

      sku: 00AS-300-EP

      Accu-Scope ACCU-CAM 300 Eyepiece Camera

      MSRP: $155.00
      Now: $140.00
      Add to Cart
    • The Excelis HDS has the camera mounted directly to its own monitor, making it a stand-alone system and a space saving option for the lab or classroom. Mounting brackets and hardware are included along with easy to follow instructions. The Excelis HDS Camera & Monitor System, Shown on a 3001-LED Microscope


The Excelis HDS has the camera mounted directly to its own monitor, making it a stand-alone system and a space saving option for the lab or classroom. Mounting brackets and hardware are included along with easy to follow instructions. The Excelis HDS Camera & Monitor System, Shown on a 3001-LED Microscope
      Quick view Details

      Accu-Scope

      |

      sku: 00AS-300-HDS

      Accu-Scope Excelis HDS Lite Camera & Monitor System

      MSRP: $1,095.00
      Now: $986.00
      Add to Cart
    •  Accu-Scope Excelis HD Lite Camera  Accu-Scope Excelis HD Lite Camera  Accu-Scope Excelis HD Lite Camera  Accu-Scope Excelis HD Lite Camera
      Quick view Details

      Accu-Scope

      |

      sku: 00AS-300-HD

      Accu-Scope Excelis HD Lite Camera

      MSRP: $695.00
      Now: $626.00
      Add to Cart
    ×
    Join Our Mailing List for special offers!
    Contact Us
    (877) BOLDEN1
    Bolden Instrument, Inc.
    Hamilton, Ohio
    Accounts & Orders
    • Gift Certificates
    • Wishlist
    • Login or Sign Up
    • Shipping & Returns
    Quick Links
    • About
    • Service
    • Contact
    • Policies
    • Bolden Instrument
    • Mitutoyo
    • © BoldenMicroscope.com
    • |
    • Sitemap
