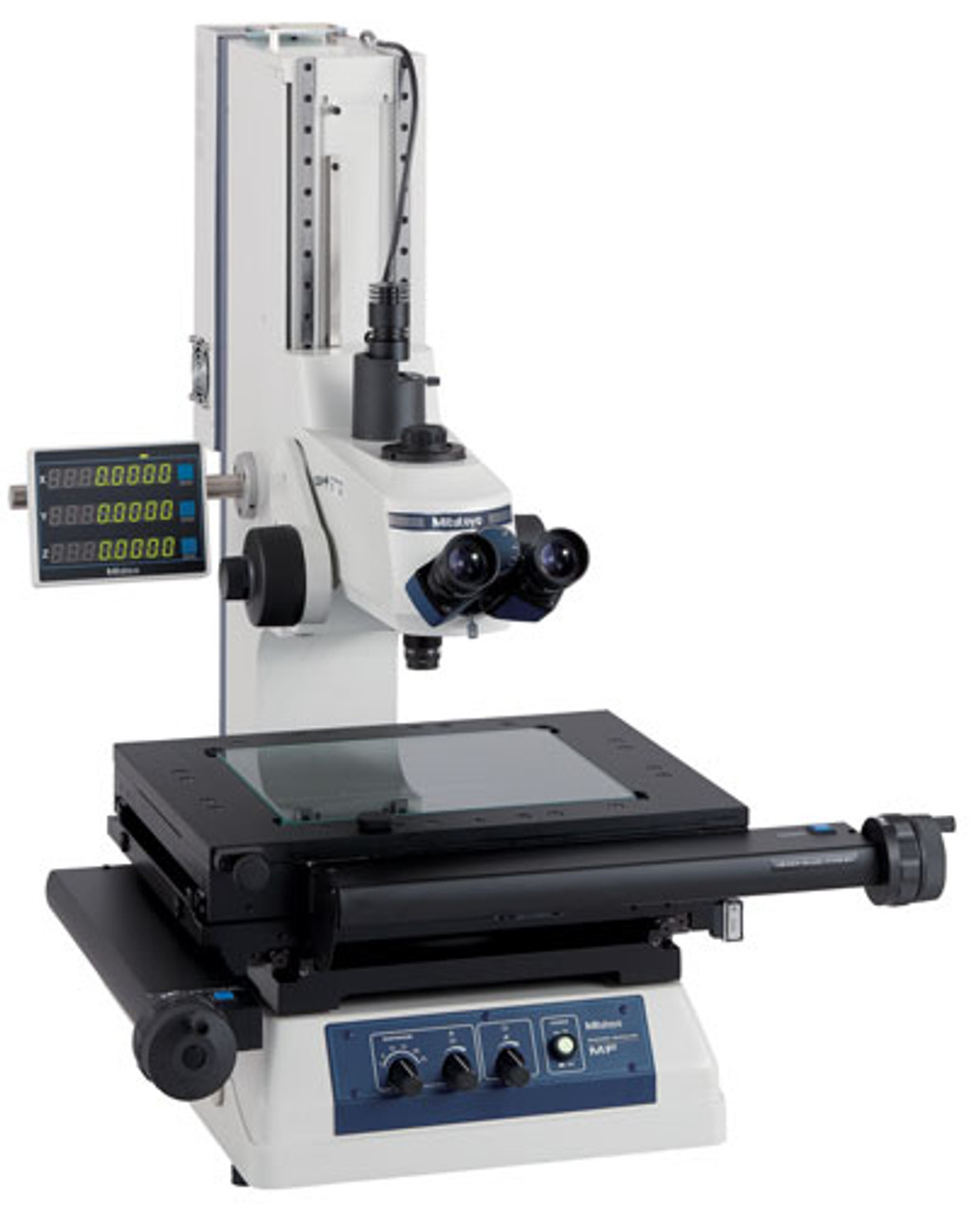

Mitutoyo MF-B2017D Measuring Microscope (176-868-10) with Binocular Head (176-393) and LED Illumination (176-445A)

$28,640.00 $25,776.00
(You save $2,864.00)

Mitutoyo MF-B2017D Measuring Microscope (176-868-10) with Binocular Head (176-393) and LED Illumination (176-445A)

$28,640.00 $25,776.00
(You save $2,864.00)
SKU:
64PKB0111
Weight:
350.00 LBS
Availability:
Typically ships in 2-6 weeks
Shipping:
Free Shipping
Quantity:
Share

Product Description

NOTE: Due to the highly configurable nature of these microscopes, please request a quote if you are not sure exactly what you need and exactly what you are getting. This product is not cancellable once ordered and not returnable when delivered.

176-868-10 Measuring Microscope (with Z-Axis Scale), 200mm x 170mm (8"x6.7") XY Travel Stage, 30x Magnification, Led Illumination Unit and Binocular Tube.

Features include:

  • Observation with a clear and flare-less erect image and a wide field of view..
  • Measuring accuracy that is the highest in its class (and conforms to JIS B 7153).
  • This model is outfitted with a high-intensity LED (176-445A).
  • The variable aperture diaphragm allows observation measurement while suppressing light diffraction.
  • The quick-release mechanism is useful for moving the stage quickly when measuring workpieces that are large in size or quantity.
  • Has a coarse, fine feed handle that is standard on both sides and allow precise focus and observation measurement regardless of handedness.
  • Includes a high-magnification eyepiece that can observe up to 2000x.
  • Includes 176-393 Binocular Tube and 176-445A LED Illumination Unit
  • Observation with a clear and flare-less erect image and a wide field of view
  • Erect image moves in the same direction as the XY stage
  • Quick release floating-type XY stage for speedy operation
  • Low-noise design
  • This model has a 8"x6.7"-200x170mm XY Stage Travel Range, 11x11" 280x280mm XY Stage Top Size.
  • This model has 30x magnification with LED illumination and Monocular Tube.

MF Series 176- Measuring Microscopes

Series 176
FEATURES
  • Observation with a crisp and high-resolution erect image and a wide field of view.
  • Measuring accuracy that is the highest in its class (and conforms to JIS B 7153)
  • ML series, high-NA objectives that are specially designed for the MF series (long working distance type)
  • Illumination unit (reflected/transmitted) selectable from a high-intensity LED or halogen bulb (selection required)
  • Variable aperture diaphragm (reflected/ transmitted) allows observation measurement while suppressing light diffraction
  • Variety of standardized stages in sizes up to 400×200mm
  • Quick-release mechanism useful for moving the stage quickly when measuring work pieces that are large in size or quantity
  • Coarse/fine feed handles equipped as standard on both sides allow precise focus and observation measurement regardless of handedness
  • High-magnification eyepiece observation up to 2000×
  • Standard measuring microscope that has a wide variety of optional accessories including a Vision Unit and various digital CCD cameras

Technical Data
Optical tube:
• Monocular or Binocular (Must Choose)
• 25º depression angle
• 90º broken cross-hair reticle (12AAG836)
• Erect image
• TV Mount 50/50

Observation Image:
• Erect

Observation Type:
• Bright Field

Eyepiece Lens
• 10x (Included w/Tube)
• 15x (Optional)
• 20x (Optional)

Objective
• Magnification: 3X (Included)
• W.D.: 2.85” (72.5mm); N.A.: 0.9
• Optional: 1x, 5x, 10x, 20x, 50x, 100x

Light Source
• Halogen or LED (Must Choose)
• Adjustable Aperture Diaphragms
• Light Intensity Infinitely Adjustable

Transmitted Illumination
• Telecentric Illumination

Reflected Illumination
• Koehler Illumination

Display Unit Number of Axis
• 2 axes (MF-A Type) or 3 axes (MF-B Type)

Resolution
• 0.0001” / 0.00005” / 0.00001” (0.001 mm / 0.0005 mm / 0.0001 mm)

Functions
•Data Output, Axis Linear Compensation, Metric or English Units, and more

Stage
• Precision Travel (2.2+0.02L)μm Accuracy
• High Accuracy Linear Glass Scales
• Quick Release Floating mode
• Zero Set Button

Mass
• 1010D - 148 lbs. / 67 kg
• 2010D - 157 lbs. / 71 kg
• 2017D - 326 lbs. / 148 kg
• 3017D - 344 lbs./ 156 kg
• 4020D - 357 lbs. / 162 kg


Optional Accessories

176-392: Monocular tube with 10X eyepiece
176-393: Binocular tube with 10X eyepiece set
378-866: 10X eyepiece set (view field dia.: 24mm)
378-857: 15X eyepiece set (view field dia.: 16mm)
378-858: 20X eyepiece set (view field dia.: 12mm)
375-043: Protractor eyepiece (10X)
176-313: Digital protractor eyepiece (10X)
375-036-2: 1X objective (W.D.: 61mm, N.A.: 0.03)
375-037-1: 3X objective (W.D.: 77mm, N.A.: 0.09) (std. accessory)
375-034-1: 5X objective (W.D.: 61mm, N.A.: 0.13)
375-039: 10X objective (W.D.: 51mm, N.A.: 0.21)
375-051: 20X objective (W.D.: 20mm, N.A.: 0.42)
375-052: 50X objective (W.D.: 13mm, N.A.: 0.55)
375-053: 100X objective (W.D.: 6mm, N.A.: 0.7)
176-314-1: Slide type nosepiece (2-mount, par focal)
176-314-2: Slide type nosepiece (2-mount, mag. adjusted)
12AAA643: ND2 color filter (transmitted / surface)
12AAA644: ND8 color filter (transmitted / surface)
12AAA645: GIF filter (transmitted / surface) (std. accessory)
12AAA646: LB80 color filter (transmitted / surface)
375-054: 0.5X camera adapter (with C-mount adapter)
970441: C-mount adapter
513667: Halogen bulb (24V, 50W)
12BAB345: Halogen bulb (long life type, 24V, 50W)
176-308: Vibration damping stand
176-309: Mounting stand
375-056: Stage micrometer
12AAA165: Lens cleaning kit
12AAA846: Foot switch
382951: Vinyl cover (standard accessory)


Illumination units
176-367-2A: LED ring illuminator
176-343A: Twin fiber-optics illuminator
176-366A: Ring fiber-optics illuminator
12AAG806: GIF color filter (for fiber-optics illuminator)
12AAG807: LB80 color filter (for fiber-optics illuminator) Fixture and Stage accessories
176-107: Holder with clamp*
172-378: V-block with clamp* (max. work piece dia.: 1” / 25mm)
172-197: Swivel center support* (max. work piece dia.: 3.1” / 80mm)
176-305: Rotary stage with fine feed knob for 1010D/2010D models
176-306: Rotary stage with fine feed knob for 2017D/3017D/4020D models



SPECIFICATIONS:

Order No. 176-861-10 176-862-10 176-863-10 176-864-10
Model No. MF-A1010D MF-A2010D MF-A2017D MF-A3017D
XY stage travel range 4x4in-100x100mm 8x4in-200x100mm 8x6.7in-200x170mm 6x6.7in-300x170mm
Z-axis travel range 6in-150mm 6in-150mm 8.7in-220mm 8.7in-220mm
Focusing method Manual focusing(coarse focusing: 30mm/rev., fine focusing: 0.2mm/rev.) Manual focusing(coarse focusing: 30mm/rev., fine focusing: 0.2mm/rev.) Manual focusing(coarse focusing: 30mm/rev., fine focusing: 0.2mm/rev.) Manual focusing(coarse focusing: 30mm/rev., fine focusing: 0.2mm/rev.)
Measurement method Linear encoder (2-axis model: X/Y-axis,3-axis model: X/Y/Z-axis) Linear encoder (2-axis model: X/Y-axis,3-axis model: X/Y/Z-axis) Linear encoder (2-axis model: X/Y-axis,3-axis model: X/Y/Z-axis) Linear encoder (2-axis model: X/Y-axis,3-axis model: X/Y/Z-axis)
Resolution (switchable) .0001"/.00005"/.00001" / 0.001mm/0.0005mm/0.0001mm .0001"/.00005"/.00001" / 0.001mm/0.0005mm/0.0001mm .0001"/.00005"/.00001" / 0.001mm/0.0005mm/0.0001mm .0001"/.00005"/.00001" / 0.001mm/0.0005mm/0.0001mm
Measuring accuracy (at 20°C) XY-axis:(2.2+0.02L)µm,L = Measuring length(mm) when not loaded, JIS B 7153 XY-axis:(2.2+0.02L)µm,L = Measuring length(mm) when not loaded, JIS B 7153 XY-axis:(2.2+0.02L)µm,L = Measuring length(mm) when not loaded, JIS B 7153 XY-axis:(2.2+0.02L)µm,L = Measuring length(mm) when not loaded, JIS B 7153
Indication accuracy (at 20°C) Z-axis:(5+0.04L)µm,L = Measuring length (mm) (MF-B type) Z-axis:(5+0.04L)µm,L = Measuring length (mm) (MF-B type) Z-axis:(5+0.04L)µm,L = Measuring length (mm) (MF-B type) Z-axis:(5+0.04L)µm,L = Measuring length (mm) (MF-B type)
XY stage top size 11x11in 280x280mm 14x11in 350x280mm 16.1x13.4in 410x342mm 20.07x13.4in 510x342mm
Effective glass size 7x7in 180x180mm 10x6in 250x150mm 10.6x9.4in 270x240mm 14.5x9.4in 370x240mm
Swiveling function - - ±5° (left) ±5° (left)
Max. stage load 22lbs/10kg 22lbs/10kg 44lbs/20kg 44lbs/20kg
Max. work piece height 6in 150mm 6in 150mm 8.7in 220mm 8.7in 220mm



Order No. 176-865-10 176-866-10 176-867-10 176-868-10
Model No. MF-A4020D MF-B1010D MF-B2010D MF-B2017D
XY stage travel range 16x8in-400x200mm 4x4in-100x100mm 8x4in-200x100mm 8x6.7in-200x170mm
Z-axis travel range 8.7in-220mm 6in-150mm 6in-150mm 8.7in-220mm
Focusing method Manual focusing(coarse focusing: 30mm/rev., fine focusing: 0.2mm/rev.) Manual focusing(coarse focusing: 30mm/rev., fine focusing: 0.2mm/rev.) Manual focusing(coarse focusing: 30mm/rev., fine focusing: 0.2mm/rev.) Manual focusing(coarse focusing: 30mm/rev., fine focusing: 0.2mm/rev.)
Measurement method Linear encoder (2-axis model: X/Y-axis,3-axis model: X/Y/Z-axis) Linear encoder (2-axis model: X/Y-axis,3-axis model: X/Y/Z-axis) Linear encoder (2-axis model: X/Y-axis,3-axis model: X/Y/Z-axis) Linear encoder (2-axis model: X/Y-axis,3-axis model: X/Y/Z-axis)
Resolution (switchable) .0001"/.00005"/.00001" / 0.001mm/0.0005mm/0.0001mm .0001"/.00005"/.00001" / 0.001mm/0.0005mm/0.0001mm .0001"/.00005"/.00001" / 0.001mm/0.0005mm/0.0001mm .0001"/.00005"/.00001" / 0.001mm/0.0005mm/0.0001mm
Measuring accuracy (at 20°C) XY-axis:(2.2+0.02L)µm,L = Measuring length(mm) when not loaded, JIS B 7153 XY-axis:(2.2+0.02L)µm,L = Measuring length(mm) when not loaded, JIS B 7153 XY-axis:(2.2+0.02L)µm,L = Measuring length(mm) when not loaded, JIS B 7153 XY-axis:(2.2+0.02L)µm,L = Measuring length(mm) when not loaded, JIS B 7153
Indication accuracy (at 20°C) Z-axis:(5+0.04L)µm,L = Measuring length (mm) (MF-B type) Z-axis:(5+0.04L)µm,L = Measuring length (mm) (MF-B type) Z-axis:(5+0.04L)µm,L = Measuring length (mm) (MF-B type) Z-axis:(5+0.04L)µm,L = Measuring length (mm) (MF-B type)
XY stage top size 24x13.4in 610x342mm 11x11in 280x280mm 14x11in 350x280mm 16.1x13.4in 410x342mm
Effective glass size 17.3x9.4in 440x240mm 7x7in 180x180mm 10x6in 250x150mm 10.6x9.4in 270x240mm
Swiveling function ±3° (left) - - ±5° (left)
Max. stage load 33lbs/15kg 22lbs/10kg 22lbs/10kg 44lbs/20kg
Max. work piece height 8.7in 220mm 6in 150mm 6in 150mm 8.7in 220mm



Order No. 176-869-10 176-870-10
Model No. MF-B3017D MF-B4020D
XY stage travel range 6x6.7in-300x170mm 16x8in-400x200mm
Z-axis travel range 8.7in-220mm 8.7in-220mm
Focusing method Manual focusing(coarse focusing: 30mm/rev., fine focusing: 0.2mm/rev.) Manual focusing(coarse focusing: 30mm/rev., fine focusing: 0.2mm/rev.)
Measurement method Linear encoder (2-axis model: X/Y-axis,3-axis model: X/Y/Z-axis) Linear encoder (2-axis model: X/Y-axis,3-axis model: X/Y/Z-axis)
Resolution (switchable) .0001"/.00005"/.00001" / 0.001mm/0.0005mm/0.0001mm .0001"/.00005"/.00001" / 0.001mm/0.0005mm/0.0001mm
Measuring accuracy (at 20°C) XY-axis:(2.2+0.02L)µm,L = Measuring length(mm) when not loaded, JIS B 7153 XY-axis:(2.2+0.02L)µm,L = Measuring length(mm) when not loaded, JIS B 7153
Indication accuracy (at 20°C) Z-axis:(5+0.04L)µm,L = Measuring length (mm) (MF-B type) Z-axis:(5+0.04L)µm,L = Measuring length (mm) (MF-B type)
XY stage top size 20.07x13.4in 510x342mm 24x13.4in 610x342mm
Effective glass size 14.5x9.4in 370x240mm 17.3x9.4in 440x240mm
Swiveling function ±5°(left) ±3° (left)
Max. stage load 44lbs/20kg 33lbs/15kg
Max. work piece height 8.7in 220mm 8.7in 220mm
