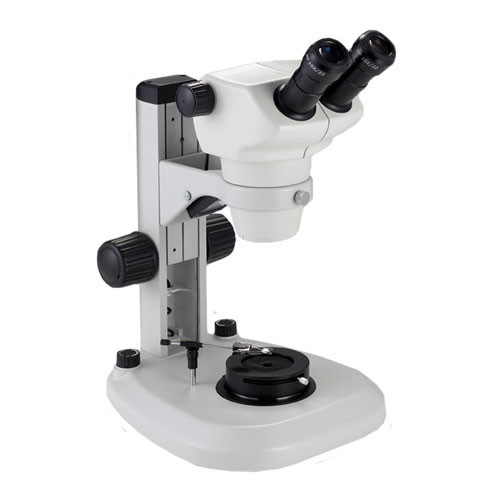

Unitron Z850 Gemological Binocular Zoom Stereo Microscope on LED Stand

$1,526.00 $1,373.00
(You save $153.00)

Unitron Z850 Gemological Binocular Zoom Stereo Microscope on LED Stand

$1,526.00 $1,373.00
(You save $153.00)
SKU:
U-13101-GEM
Weight:
22.00 LBS
Shipping:
Free Shipping
Quantity:
Share

Product Description

Z850 Zoom Stereo Microscope Series

The Unitron Z850 Series with a 6.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications requiring a higher magnification range.

The Z850 Series is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage.

Unitron Z850 Gemological Binocular Zoom Stereo Microscope on LED Stand

Binocular viewing head, 0.8x to 5.0x zoom range, inclined at 45º, 115mm W.D.,
interpupillary distance adj. 52-75mm, glass lens shield
Widefield 10x eyepieces with built-in diopter adjustment (paired), 22mm field of view
Variable LED incident (12v/2w) and transmitted (12v4w) focusing stand with stage
clips, universal power supply
Darkfield condenser w/adjustable iris diaphragm, wire stoneholder (gem clamp)
Frosted, clear glass, black & white stage plates, dust cover and instruction manual

Specifications

  • Variable LED Focusing Stand
  • 12v/2w variable LED incident light
  • 12v/4w variable LED transmitted light
  • 4 inches (100mm) of continuously smooth focus travel
  • Darkfield condenser with adjustable iris diaphragm
  • Wire stone holder / gem clamp
  • Binocular viewing body
  • WF10x focusable eyepieces, 22mm field of view
  • 8x – 50x magnification range with click stops at 1x, 2x, 3x, 4x and 5x
  • 115mm working distance

Standard Specifications

  • 0.8x – 5.0x zoom magnification range
  • 6.3:1 Zoom ratio
  • Magnification range 8x-50x (with 10x eyepieces)
  • 45° viewing angle
  • 115mm working distance
  • Interpupillary Distance Adjustment 52mm – 75mm
  • WF10x/22mm focusing eyepieces
  • Field of view 27.5mm-4.4mm
  • Airtight and anti-mold design
