Product Description

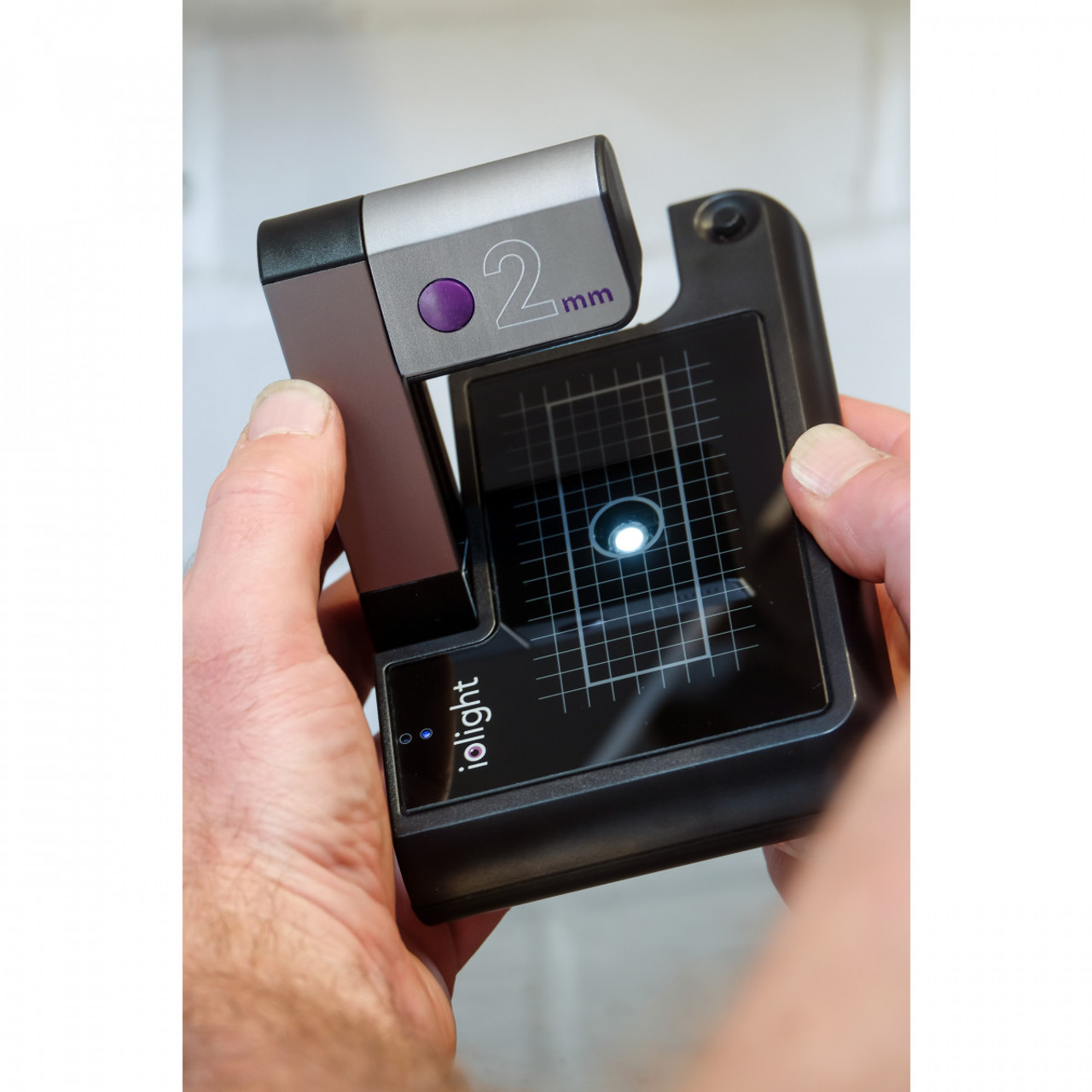

ioLight 2mm Portable Digital Microscope with XY Stage
Specifications
- View live images on your smart phone or computer via WiFi connection
- 2mm field of view 1um resolution Capture 5MP JPG images (2592 x 1944)
- Capture video (1296 x 972) at 10fps
- Up to 150x magnification (depending on size of mobile device screen)

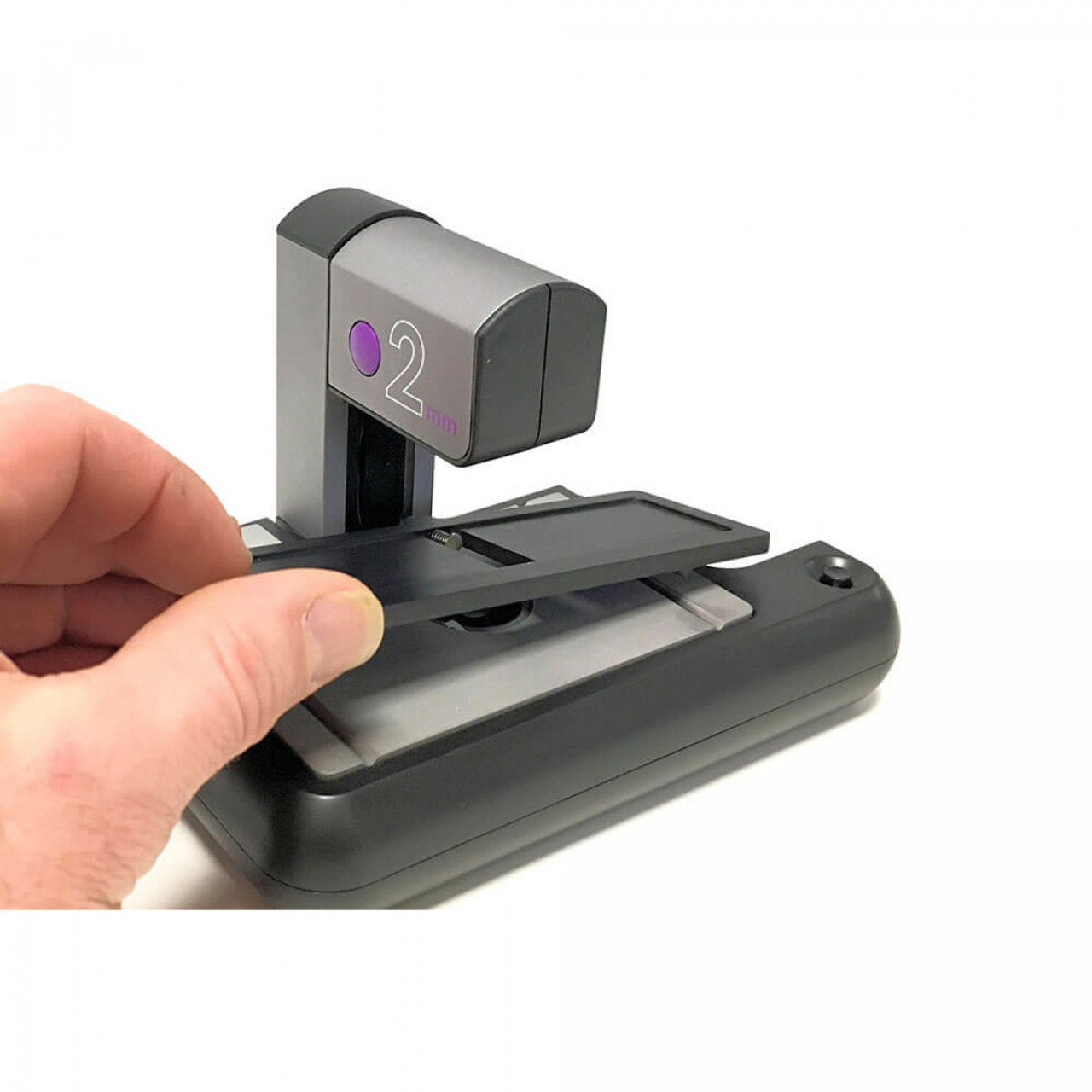

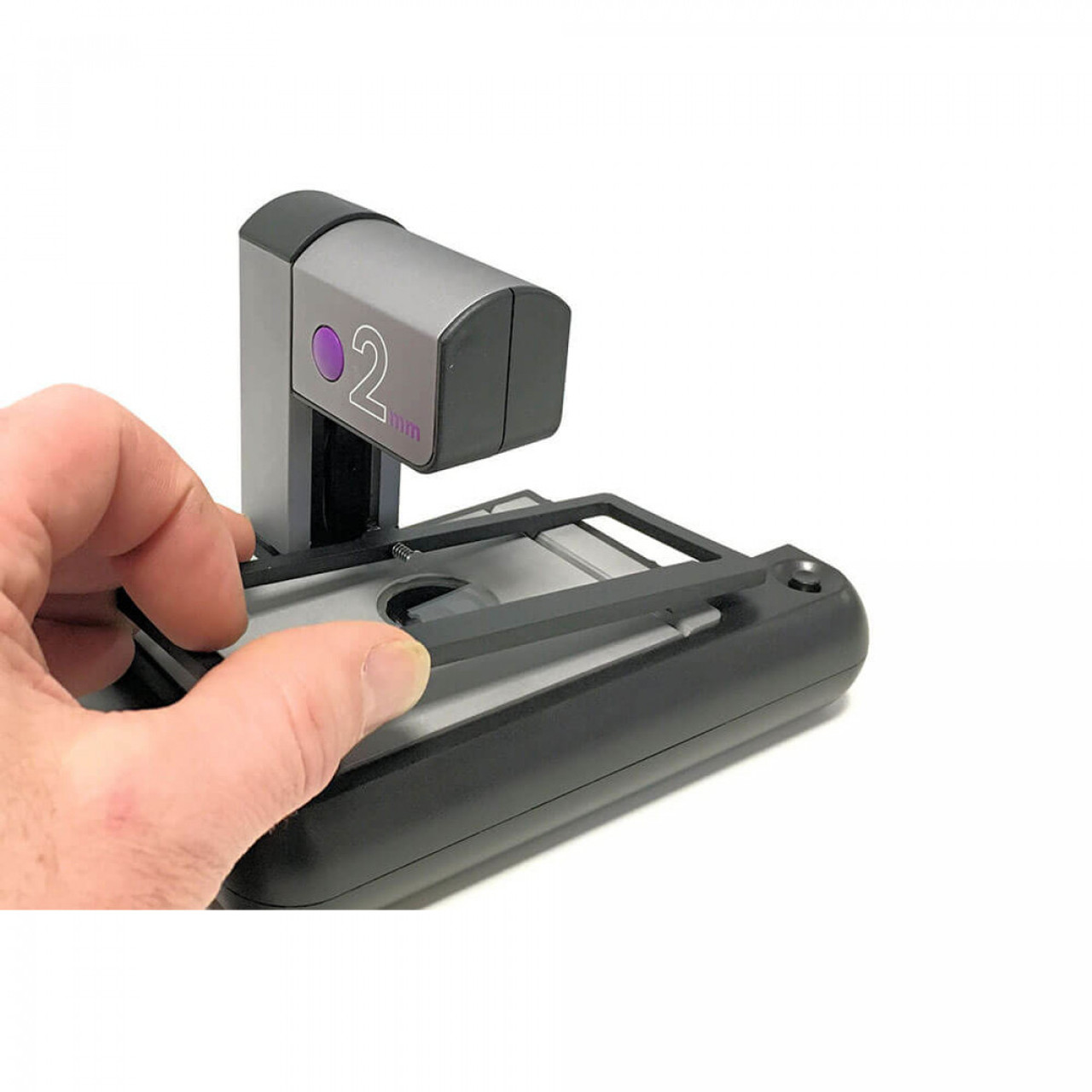

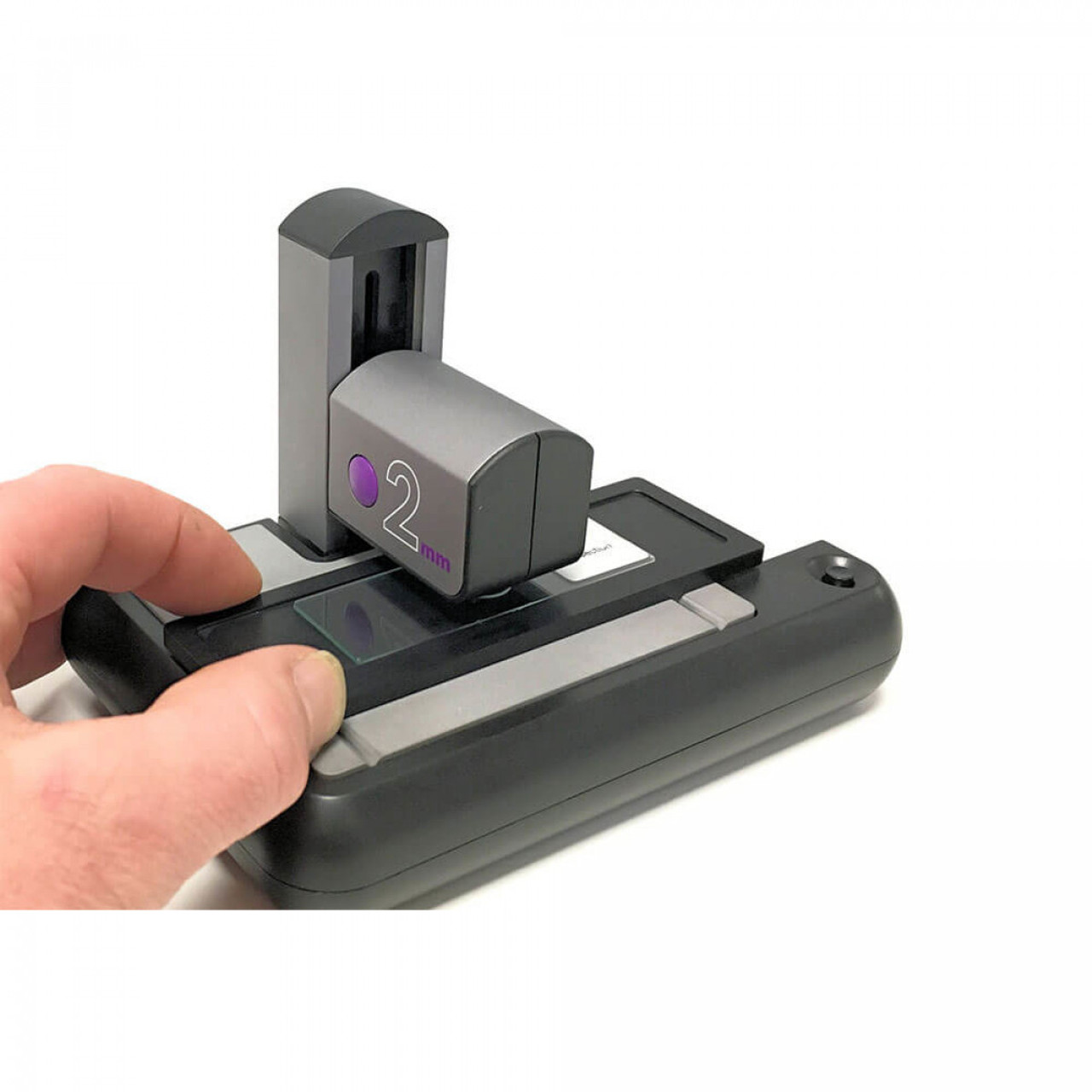

- XY slide carrier allows simple microscope slide movement across the stage. Carriages for either 25mmx75mm, 1”x3” slides or counting chambers and 32mmx75mm/3” counting chambers. Can be used without the carriage (same as with standard 1mm microscope).
- Working distance 2.5mm
- Variable top and bottom illumination
- Stainless steel stage
- Operate microscope with Apple or Android mobile device or via browser. Download mobile apps from Google Play and Apple App Store
- Rechargeable Li-ion battery via USB charger
- Dimensions: 160mm x 101mm x 32mm (closed); 160mm x 101mm x 107mm (open during operation)
- Weight: 600g with 1 slide carrier and included neoprene case
- Optional travel case (CAT #IOL-3295)
.
Screenshots of ioLight user interface
- Main interface of ioLight app on iPhone:
- Settings interface of ioLight app on iPhone:
- Main interface of ioLight app on browser (Chrome on Windows 11):
- Settings interface of ioLight app on browser (Chrome in Windows 11):
- Keyboards shortcuts menu of ioLight app in browser (Chrome in Windows 11):
