Product Description
Z850 Zoom Stereo Microscope Series
The Unitron Z850 Series with a 6.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications requiring a higher magnification range.
The Z850 Series is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage.

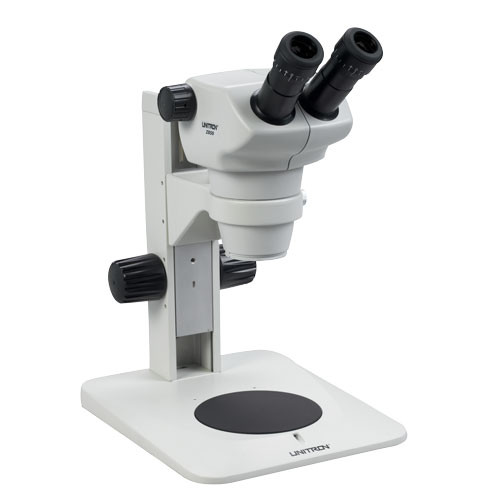

Binocular Zoom Stereo Microscope on Plain Focusing Stand
Binocular viewing head, 0.8x to 5.0x zoom range, inclined at 45°, 115 mm working distance, interpupillary distance adj. 52-75mm, glass lens shield
Widefield 10x eyepieces with built-in diopter adjustment (paired), 22mm field of view
Plain focusing stand with 125mm black and white stage plate
Dust cover and instruction manual
Specifications
- Plain Focusing Stand with tension adjustment
- 4 inches (100mm) of continuously smooth focus travel
- Black and white stage plate
- Binocular viewing body
- WF10x focusable eyepieces, 22mm field of view
- 8x – 50x magnification range with click stops at 1x, 2x, 3x, 4x and 5x
- 115mm working distance
Standard Specifications
- 0.8x – 5.0x zoom magnification range
- 6.3:1 Zoom ratio
- Magnification range 8x-50x (with 10x eyepieces)
- 45° viewing angle
- 115mm working distance
- Interpupillary Distance Adjustment 52mm – 75mm
- WF10x/22mm focusing eyepieces
- Field of view 27.5mm-4.4mm
- Airtight and anti-mold design
Optional Accessories
LED ring lights, fiber optic illuminators and fluorescent ring illuminators, 0.5x, 0.7x and 2.0x auxiliary objectives, Digital cameras and c-mount adapters, 15x and 20x focusing eyepieces, Reticles and stage micrometers
