Product Description
Z730 Zoom Stereo Microscope Series
The Unitron Z730 Series with a 4.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications. Featuring outstanding optics and a large field of view with a high depth of focus, the Z730 reduces sample handling times allowing for faster inspections and a more efficient work process. The Z730 Series is available with a binocular (45° or 60° degree viewing angle), or with a trinocular (45° viewing angle) viewing head.

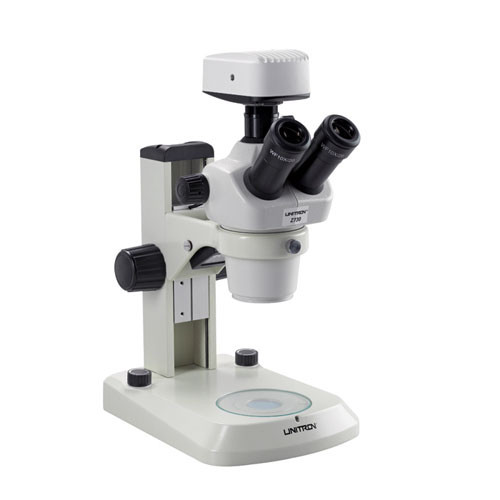

Unitron Z730 Trinocular Zoom Stereo Microscope on E-LED Stand
45º Trinocular viewing head, 0.7x to 3.0x zoom range, inclined at 45º, 97 mm working
distance, interpupillary distance adj. 52-75mm, glass lens shield
WF10x focusing eyepieces, 20mm field of view
Variable LED incident and transmitted focusing stand with stage clips, universal
power supply
95mm Clear glass, black & white stage plates, dust cover and manual
Specifications
- E-LED Stand
- Variable reflected and transmitted illumination
- LED reflected and transmitted illuminators can be used independently or simultaneously
- Light quality: homogenous daylight 6500°K for both the reflected and transmitted illuminators
- LED bulbs emit light that is UV and IR free
- Approximate service life of the LED bulbs is 50,000 hours
- 4 inches (100mm) of continuously smooth focus travel
- Black, white and clear glass stage plates
- Base dimensions (LWH): 260mm x 184mm x 267mm
- Universal power supply 100v to 240v, voltage sensitive, integrated
- Trinocular viewing body
- WF10x focusable eyepieces, 20mm field of view
- 30x magnification range
- 97mm working distance
Standard Specifications
- 0.7x to 3.0x zoom magnification range
- 4.3:1 Zoom ratio
- Magnification range 7x to 30x (with 10x eyepieces)
- Interpupillary Distance Adjustment 52mm – 75mm
- WF10x/20mm focusing eyepieces
- Airtight and anti-mold design
- 97mm working distance
Optional Accessories
LED ring lights, fiber optic illuminators and fluorescent ring illuminators, 0.3x, 0.63x and 2.0x auxiliary objectives, Digital cameras and c-mount adapters, 15x and 20x focusing eyepieces, Reticles and stage micrometers.
