Product Description
Z730 Zoom Stereo Microscope Series
The Unitron Z730 Series with a 4.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications. Featuring outstanding optics and a large field of view with a high depth of focus, the Z730 reduces sample handling times allowing for faster inspections and a more efficient work process. The Z730 Series is available with a binocular (45° or 60° degree viewing angle), or with a trinocular (45° viewing angle) viewing head.

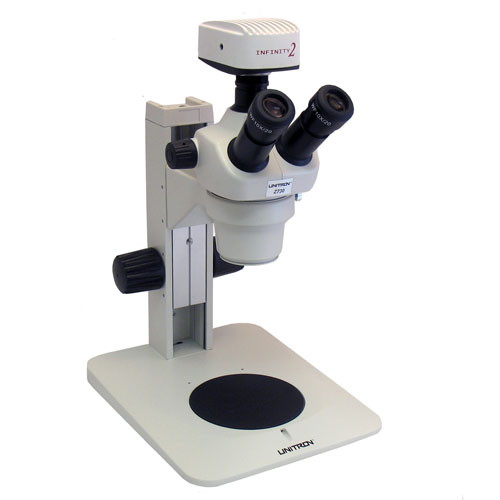

Unitron Z730 Trinocular Zoom Stereo Microscope on Plain Focusing Stand
45º Trinocular viewing head, 0.7x to 3.0x zoom range, inclined at 45º, 97 mm working
distance, interpupillary distance adj. 52-75mm, glass lens shield
WF10x focusing eyepieces, 20mm field of view
Plain focusing stand with 125mm black and white stage plate
Dust cover and manual
Specifications
- Plain Focusing Stand with tension adjustment
- 4 inches (100mm) of continuously smooth focus travel
- Black and white stage plate
- Trinocular viewing body
- WF10x focusable eyepieces, 20mm field of view
- 7x – 30x magnification range
- 97mm working distance
Standard Specifications
- 0.7x to 3.0x zoom magnification range
- 4.3:1 Zoom ratio
- Magnification range 7x to 30x (with 10x eyepieces)
- Interpupillary Distance Adjustment 52mm – 75mm
- WF10x/20mm focusing eyepieces
- Airtight and anti-mold design
- 97mm working distance
Optional Accessories
LED ring lights, fiber optic illuminators and fluorescent ring illuminators, 0.3x, 0.63x and 2.0x auxiliary objectives, Digital cameras and c-mount adapters, 15x and 20x focusing eyepieces, Reticles and stage micrometers.
